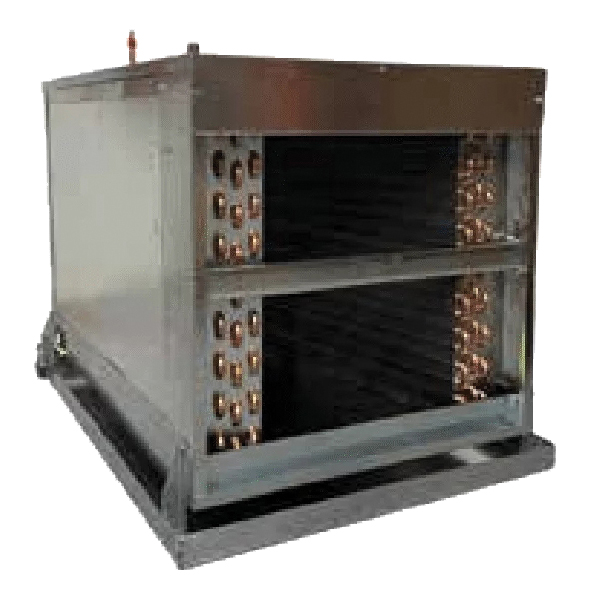

Aspen CP61C3D-210T-042
Aspen Dedicated Coil, Series: CP Series, 61000 Btu, Horizontal Configuration, Plenum Coil, 3/8 in Connection, 500 psi, Aluminum/Copper, 24-1/2 in H x 21 in W x 33 in D
| Series | : | CP Series |
| Coil Type | : | Plenum |
| BTU Rating | : | 61000 Btu |
| Configuration | : | Horizontal |
| Connection Size | : | 3/8 in |
| Pressure Rating | : | 500 psi |
| Material | : | Aluminum/Copper |
| Dimensions | : | 24-1/2 in H x 21 in W x 33 in D |
- Rifled copper tubing, enhanced aluminum fins.
- Immersion-tested at 500 psi, then nitrogen-pressurized and sealed.
- Liquid line - 3/8" OD, suction line -3/4" OD on 1-1/2- 3 ton and 7/8" OD on 3-1/2 - 5 ton.
- Refrigerant lines exit from the top of the coil with Schrader valve for hiss-testing.
- Three-piece access doors on top of the coil for easy service.
- Fully insulated cabinet with plenum sides and back constructed of foil-backed, faced, one-inch thick, fiberglass duct board.
- Heavy duty plastic pan with 4-3/4" NPT condensate drains on each side of the coil.
- Secondary metal drain pan included with one inch spacing around the cabinet for turnkey installation.
- AHRI certifiable with all brands of A/C and heat pump systems.
- ETL listed for use with R-22, R-410A, R-454B and R-32 when proper metering device is used.
- Ten-year limited warranty with registration.
