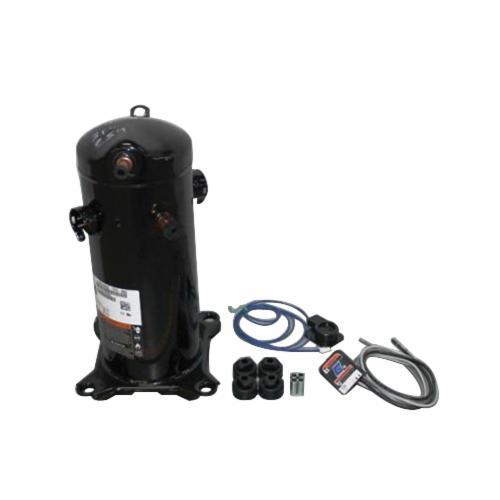

Bard® 8000-382
Bard® Scroll Compressor, 40000 Btu/hr BTU, 7/8 in Stub Suction Line, 1/2 in Stub Discharge Line, 4.83 cu-ft/min, 208 - 230 VAC, 18.75 A, 3980 W, 3-1/4 hp, R-410A Refrigerant, 3500 rev/min Speed, 10.35 EER, POE Oil-AK/DA, 3MA/SP32 Compressor Oil, 45 deg F Evaporator, 130 deg F Condensing, 65 deg F Return Gas, 115 deg F Liquid, 9.56 in L x 9.56 in W x 16.94 in H
| BTU Rating | : | 40000 Btu/hr |
| Amperage Rating | : | 18.75 A |
| Voltage Rating | : | 208 to 230 VAC |
| Compressor Oil | : | POE Oil-AK/DA, 3MA/SP32 |
| Refrigerant Type | : | R-410A |
| Discharge Line Size | : | 1/2 in Stub |
| CFM Rating | : | 4.83 cfm |
| Suction Line Size | : | 7/8 in Stub |
| Power Rating | : | 3980 W, 3-1/4 hp |
| Speed Rating | : | 3500 rpm |
| EER Rating | : | 10.35 |
| Temperature Rating | : | 45 deg F Evaporator, 130 deg F Condensing, 65 deg F Return Gas, 115 deg F Liquid |
| Dimensions | : | 9.56 in L x 9.56 in W x 16.94 in H |
- Capacitor run-permanent split capacitor compressor motor type
- Internal inherent protection
- Model variation
- Ultra tech modulation
- 42 oz initial oil charge, 38 oz oil recharge
- 177-1/2 cu-in internal free volume
- 7-1/2 in L x 7-1/2 in W x 17.17 in H mounting
- 2.39 cu-in/rev displacement
- 23.6 A-rated load, 104 A locked rotor
