Bard® 8000-933

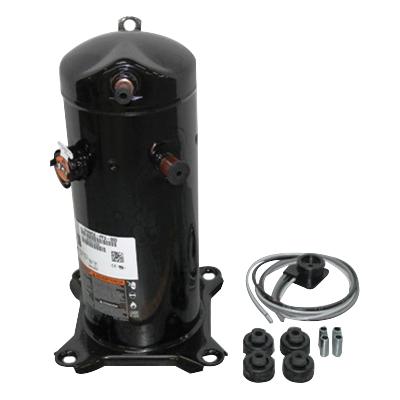

Bard® 8000-933 Scroll Compressor, 460 VAC, 3520 W, 6 hp, R-22, R-407C Refrig

Bard® 8000-933

Bard® Scroll Compressor, 72000 Btu/hr BTU, 7/8 in Stub Suction Line, 1/2 in Stub Discharge Line, 10.04 cu-ft/min, 460 VAC, 6.5 A, 3520 W, 6 hp, R-22, R-407C Refrigerant, 2900 rev/min Speed, 19.6 EER, POE Oil-AK/DA, 3MA/SP32 Compressor Oil, 45 deg F Evaporator, 100 deg F Condensing, 65 deg F Return Gas, 85 deg F Liquid, 9.48 in L x 9.71 in W x 17-3/4 in H

BTU Rating      :      72000 Btu/hr
Amperage Rating      :      6.5 A
Voltage Rating      :      460 VAC
Compressor Oil      :      POE Oil-AK/DA, 3MA/SP32
Refrigerant Type      :      R-22, R-407C
Discharge Line Size      :      1/2 in Stub
CFM Rating      :      10.04 cfm
Suction Line Size      :      7/8 in Stub
Power Rating      :      3520 W, 6 hp
Speed Rating      :      2900 rpm
EER Rating      :      19.6
Temperature Rating      :      45 deg F Evaporator, 100 deg F Condensing, 65 deg F Return Gas, 85 deg F Liquid
Dimensions      :      9.48 in L x 9.71 in W x 17.75 in H
  • General 3-lead single voltage, 6-lead part winding (575 V)
  • Internal inherent protection
  • Model variation
  • 60 oz initial oil charge, 56 oz oil recharge
  • 7-1/2 in L x 7-1/2 in W x 18 in H mounting
  • 248 cu-in internal free volume
  • 5.98 cu-in/rev displacement
  • 10 A-rated load, 74 A locked rotor, 14 A maximum continuous
  • Bill of material-terminal cover, mounting parts, flag terminal kit
