        Bard® 8000-910
        Send Print
        1. pin-int
        Bard® 8000-910

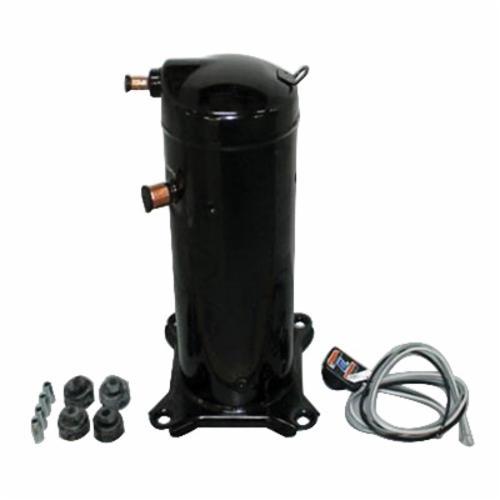

        Bard® 8000-910 Scroll Compressor, 208 - 230 VAC, 3490 W, R-22, R-407C Refrig

        Bard® 8000-910

        Bard® Scroll Compressor, 38000 Btu/hr BTU, 7/8 in Stub Suction Line, 1/2 in Stub Discharge Line, 6.3 cu-ft/min, 208 - 230 VAC, 16.3 A, 3490 W, R-22, R-407C Refrigerant, 3500 rev/min Speed, 10.5 EER, POE Oil-AK/DA, 3MA/SP32 Compressor Oil, 45 deg F Evaporator, 130 deg F Condensing, 65 deg F Return Gas, 115 deg F Liquid, 9.69 in L x 9.69 in W x 16.94 in H

        BTU Rating      :      38000 Btu/hr
        Amperage Rating      :      16.3 A
        Voltage Rating      :      208 to 230 VAC
        Compressor Oil      :      POE Oil-AK/DA, 3MA/SP32
        Refrigerant Type      :      R-22, R-407C
        Discharge Line Size      :      1/2 in Stub
        CFM Rating      :      6.3 cfm
        Suction Line Size      :      7/8 in Stub
        Power Rating      :      3490 W
        Speed Rating      :      3500 rpm
        EER Rating      :      10.5
        Temperature Rating      :      45 deg F Evaporator, 130 deg F Condensing, 65 deg F Return Gas, 115 deg F Liquid
        Dimensions      :      9.69 in L x 9.69 in W x 16.94 in H
        • Capacitor run-permanent split capacitor compressor motor type
        • Internal inherent protection
        • Model variation
        • 42 oz initial oil charge, 34 oz oil recharge
        • 7-1/2 in L x 7-1/2 in W x 17.17 in H mounting
        • 207.6 cu-in internal free volume
        • 3.11 cu-in/rev displacement
        • 21.4 A-rated load, 112 A locked rotor, 30 A maximum continuous
