        Bard® 8000-878
        Send Print
        1. pin-int
        Bard® 8000-878

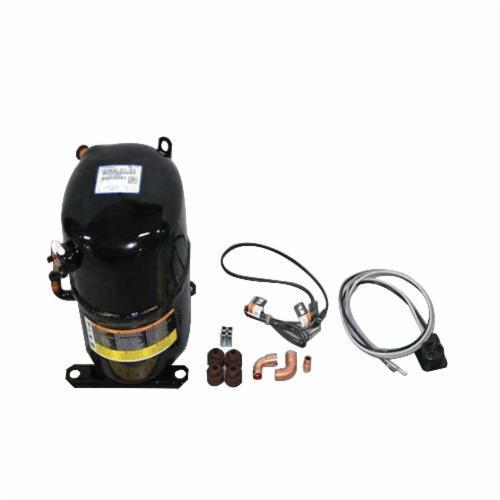

        Bard® 8000-878 Hermetic Compressor, 208 - 230 VAC, 2440 W, R-22 Refrigerant

        Bard® 8000-878

        Bard® Hermetic Compressor, 28000 Btu/hr BTU, 3/4 in Stub Suction Line, 1/2 in Stub Discharge Line, 6.12 cu-ft/min, 208 - 230 VAC, 11.8 A, 2440 W, R-22 Refrigerant, 3500 rev/min Speed, 10.7 EER, Polyolester Compressor Oil, 45 deg F Evaporator, 130 deg F Condensing, 65 deg F Return Gas, 115 deg F Liquid, 10.23 in L x 9.65 in W x 13.56 in H

        BTU Rating      :      28000 Btu/hr
        Amperage Rating      :      11.8 A
        Voltage Rating      :      208 to 230 VAC
        Compressor Oil      :      Polyolester
        Refrigerant Type      :      R-22
        Discharge Line Size      :      1/2 in Stub
        CFM Rating      :      6.12 cfm
        Suction Line Size      :      3/4 in Stub
        Power Rating      :      2440 W
        Speed Rating      :      3500 rpm
        EER Rating      :      10.7
        Temperature Rating      :      45 deg F Evaporator, 130 deg F Condensing, 65 deg F Return Gas, 115 deg F Liquid
        Dimensions      :      10.23 in L x 9.65 in W x 13.56 in H
        • Capacitor run-permanent split capacitor compressor motor type
        • Internal inherent protection-one-protector use with contactor
        • Compressor family Series
        • Model variation
        • 45 oz initial oil charge, 43 oz oil recharge
        • 7-1/2 in L x 7-1/2 in W x 13.94 in H mounting
        • 15.3 A-rated load, 75 A locked rotor, 21.4 A maximum continuous
        • Two-cylinders
        • 1.66 in bore, 0.7 in stroke
        • 3.02 cu-in/rev displacement
