        Fieldpiece SC660
        Send Print
        1. pin-int

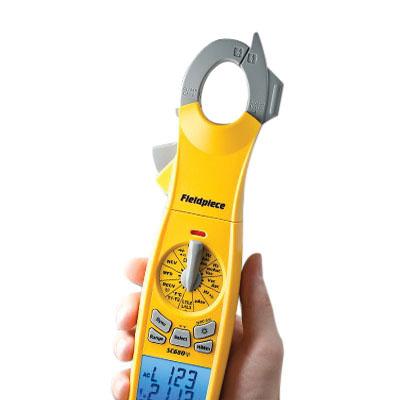

        Fieldpiece SC660

        Fieldpiece SC660 Clamp Meter, 600 V, 400 A, 50 MOhm, 1.2 in Jaw, 10 to 400 Hz, B

        Fieldpiece SC660

        Fieldpiece Clamp Meter, 600 V, 400 A, 50 MOhm Resistance, 1.2 in Jaw, 10000, 10 to 400 Hz, Backlit Display, 2% AC Current Accuracy, 0.5%, 1.2% Voltage Accuracy, CAT III 600 V, 9 V, 32 to 122 deg F Operating, 10000 uF, 3% Capacitance Accuracy, 1%, 2% DC Current Accuracy, 1% Resistance Accuracy, 0.01 A, 0.0001 V, 0.01 Ohm, 0.00001 uF Resolution, +/-1 deg F Temperature Accuracy, -58 to 2372 deg F, Additional Information: 100 hr Battery Life, Alkaline Battery Type

        Voltage Rating      :      600 V
        Amperage Rating      :      400 A
        Resistance      :      50 MOhm
        Jaw Capacity      :      1.2 in
        Counts      :      10000
        Frequency Rating      :      10 to 400 Hz
        Display Type      :      Backlit
        AC Current Accuracy      :      2 %
        Voltage Accuracy      :      0.5%, 1.2%
        Safety Rating      :      CAT III 600 V
        Power Supply      :      9 V
        Operating Temperature      :      32 to 122 deg F
        Capacitance      :      10000 uF
        Capacitance Accuracy      :      3 %
        DC Current Accuracy      :      1%, 2%
        Resistance Accuracy      :      1 %
        Resolution      :      0.01 A, 0.0001 V, 0.01 Ohm, 0.00001 uF
        Temperature Accuracy      :      +/-1 deg F
        Temperature Rating      :      -58 to 2372 deg F
        Additional Information      :      100 hr Battery Life, Alkaline Battery Type
        • Job Link mobile system capability via JL2 transmitter: send and save electrical measurements to Job Link mobile system app via the JL2 long range transmitter for professional reporting, plus, calculate power (kW) and system efficiency (EER and SEER) for in D understanding of system performance in real world conditions
        • Swivel head with LED flashlight - open the clamp to illuminate the wire bundle you're hunting, rotate the clamp 180deg to see the display easier, the clamp's claw grabs the wire you want to measure
        • Electrical testing for HVACR - true RMS readings through the clamp or leads, capture starting amps with Inrush
        • Test 3-Phase power test - conveniently test phase rotation without carrying around an extra meter or extra lead, with the included alligator test lead connected to L1, you can determine phase rotation with one hand
        • Trusted dual-temperature: reliable temperature in fast changing environments, view two thermocouple inputs at the same time, or check delta T across the evaporator
        • Huge backlit display - view two measurements so large you can read them at a distance and in the dark
        • Rugged dual display - broad temperature range tolerance allows for testing in freezers and on rooftops
        • Capacitance - test motor start and run capacitor, determine when a capacitor needs to be replaced
        • Wireless testing send measurements to the Job LinkTM mobile system app via JL2 transmitter or view measurements from other compatible tools (ET2W, EH4W, SC57, LT17AW, SC460, SC660) across the jobsite LIVE
        • Magnetic hanger - hanging strap flips out to keep the meter locked in place
        • Probe storage: snap the leads into the back of the meter, no more tangles or probe tip pricks
        • Dial backlight - view the dial in low light
        • Safety and convenience - use non-contact voltage to check if the wire is hot or not, use the probe holder on the cl A to test voltage more safely with one hand, test voltage hands-free using the magnetic hanger
