        Bard® 8000-814
        Send Print
        1. pin-int
        Bard® 8000-814

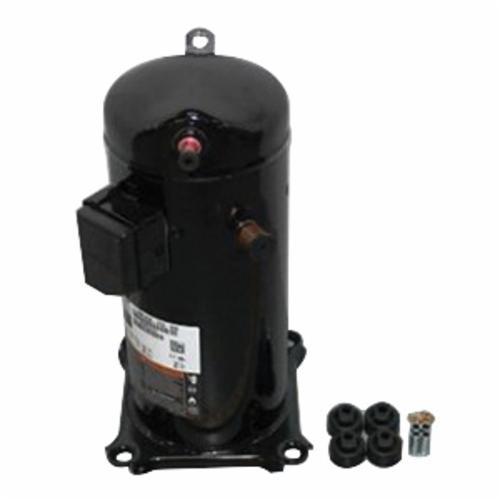

        Bard® 8000-814 Scroll Compressor, 460 VAC, 5350 W, 5 hp, R-22 Refrigerant

        Bard® 8000-814

        Bard® Scroll Compressor, 61000 Btu/hr BTU, 7/8 in Stub Suction Line, 1/2 in Stub Discharge Line, 10.21 cu-ft/min, 460 VAC, 7.8 A, 5350 W, 5 hp, R-22 Refrigerant, 3500 rev/min Speed, 11.6 EER, POE Oil-AK/DA, 3MA/SP32 Compressor Oil, 45 deg F Evaporator, 130 deg F Condensing, 65 deg F Return Gas, 115 deg F Liquid, 9.69 in L x 9.69 in W x 17.24 in H

        BTU Rating      :      61000 Btu/hr
        Amperage Rating      :      7.8 A
        Voltage Rating      :      460 VAC
        Compressor Oil      :      POE Oil-AK/DA, 3MA/SP32
        Refrigerant Type      :      R-22
        Discharge Line Size      :      1/2 in Stub
        CFM Rating      :      10.21 cfm
        Suction Line Size      :      7/8 in Stub
        Power Rating      :      5350 W, 5 hp
        Speed Rating      :      3500 rpm
        EER Rating      :      11.6
        Temperature Rating      :      45 deg F Evaporator, 130 deg F Condensing, 65 deg F Return Gas, 115 deg F Liquid
        Dimensions      :      9.69 in L x 9.69 in W x 17.24 in H
        • General 3-lead single voltage, 6-lead part winding (575 V)
        • Internal inherent protection
        • Model variation
        • 66 oz initial oil charge, 62 oz oil recharge
        • 7-1/2 in L x 7-1/2 in W x 17.99 in H mounting
        • 257 cu-in internal free volume
        • 9.1 A-rated load, 62 A locked rotor, 12.8 A maximum continuous
        • Bill of material-terminal cover, mounting parts, flag terminal kit
