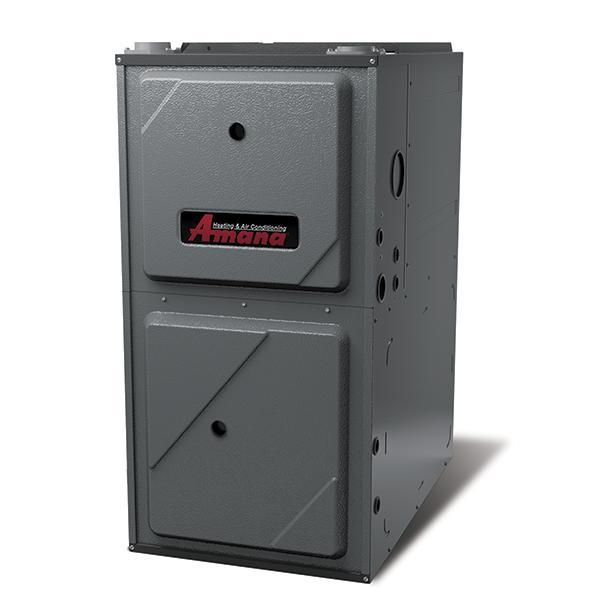

Amana® AR9S960805CU
Amana® Gas Furnace, Series: AR9S96 Series, 80000 Btu/hr Input BTU Rating, 76880 Btu/hr Output BTU Rating, 115 V, 16.7 A, 2000 cfm Rating, 1 hp Rating, 96 % AFUE, 1 ph, 60 Hz, 1 Stage, Horizontal, Upflow Configuration, FPT Connection Type, 1/2 in Connection, 4 Burners, 9 Speed, 10 in W x 11 in D Blower Size, 23 in L x 21 in W x 34-1/2 in H Cabinet Dimensions, ECM Motor, 2 to 3 in Vent Size, 25 A Fuse, Steel, Baked Enamel, 25 to 55 deg F Rise, Additional Information: <14 NG/J Nox, Silicon Nitride Ignition Sytem Element Material
| Series | : | AR9S96 Series |
| Voltage Rating | : | 115 V |
| Amperage Rating | : | 16.7 A |
| Configuration | : | Horizontal, Upflow |
| AFUE Rating | : | 96 % |
| CFM Rating | : | 2000 cfm |
| HP Rating | : | 1 hp |
| Input BTU Rating | : | 80000 Btu/hr |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| Number of Stages | : | 1 |
| Connection Type | : | FPT |
| Fuse Rating | : | 25 A |
| Motor Type | : | ECM |
| Material | : | Steel |
| Finish | : | Baked Enamel |
| Additional Information | : | <14 NG/J Nox, Silicon Nitride Ignition Sytem Element Material |
- Heavy-duty stainless-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Single-stage gas valve
- Durable Silicon Nitride igniter
- Quiet single-speed induced draft blower
- Self-diagnostic control board with constant memory fault code history output to a LED
- All models comply with California 40 ng/J Low NOx emissions standard
- Can not be installed in California's South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
- AHRI Certified; ETL Listed
- Quiet Comfort: Many homeowners may think the best gas furnaces are not seen or heard. That's why an Amana brand AR9T80 Two-Stage, Multi-Speed Gas Furnace is insulated for noise reduction. With a sound-isolated blower assembly and a heavy-gauge steel cabin
- Energy Efficiency: Energy efficiency equates to cost savings. A gas furnace's efficiency rating can primarily be determined by two factors: its AFUE rating (Annual Fuel Utilization Efficiency), which indicates what percentage of each dollar of natural gas
Specification Sheet
