        Goodman® CAPEA2418B3
        Send Print
        1. pin-int
        Goodman® CAPEA2418B3

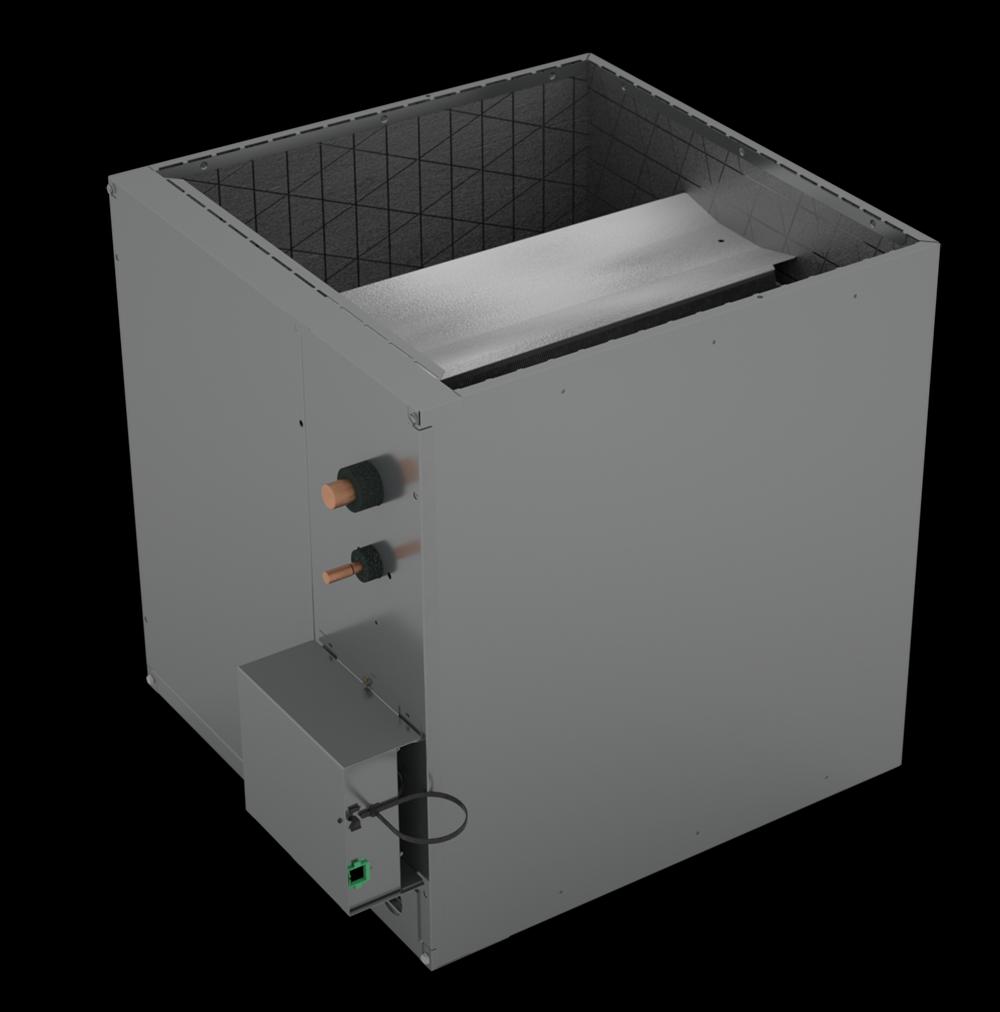

        Goodman® CAPEA2418B3 Indoor Evaporator Coil, Cased A Coil, 2 ton, Aluminum

        Goodman® CAPEA2418B3

        The Daikin brand All-aluminum CAPE Cased Upflow/Downflow Indoor Coils are made for the Daikin Fit system. This unit features aluminum tubing and corrugated aluminum fin coils and rust resistant, high-temperature, thermoplastic drain pans. The CAPE cabinet is painted nickel gray.

        Goodman® Indoor Evaporator Coil, Series: CAPEA Series, Downflow, Upflow Configuration, 2 ton Tonnage, R-32, Cased A Coil, 5/16 in, 3/8 in, 5/8 in, 3/4 in Connection, Aluminum, Galvanized/Leather Grain-Embossed/Painted, Gray, 18 in H x 17-1/2 in W x 21 in D, Additional Information: 18 in H Cased Coil, 17-1/2 in W for Gas Furnace, Electronic Expansion Valve

        Series      :      CAPEA Series
        Coil Type      :      Cased A
        Tonnage      :      2 ton
        Configuration      :      Downflow, Upflow
        Refrigerant Type      :      R-32
        Connection Size      :      5/16 in, 3/8 in, 5/8 in, 3/4 in
        Material      :      Aluminum
        Finish      :      Galvanized/Leather Grain-Embossed/Painted
        Color      :      Gray
        Dimensions      :      18 in H x 17-1/2 in W x 21 in D
        Additional Information      :      18 in H Cased Coil, 17-1/2 in W for Gas Furnace, Electronic Expansion Valve
        • Electronic Expansion Valve (EEV) models feature:
        • ComfortNet™ communicating system compatible
        • Cooling and heat pump applications
        • Fault recall of six most recent faults
        • All-aluminum evaporator coil
        • Galvanized and leather grain-embossed finish
        • Rust-resistant and high-temperature and thermoplastic drain pans feature a low water-retention design
        • Upflow/downflow configuration
        • 21 inch depth for easier attic access
        • Foil-faced insulation covers the internal casing to reduce cabinet condensation
        • Split-seam front for easy access (CAPE only)
        • DecaBDE-free UV-resistant drain pan
        • UV-resistant drain pan
        • Compatible with the Daikin Fit system only
        • AHRI certified; ETL listed
