        iO HVAC Controls MD-14
        Send Print
        1. pin-int
        iO HVAC Controls MD-14

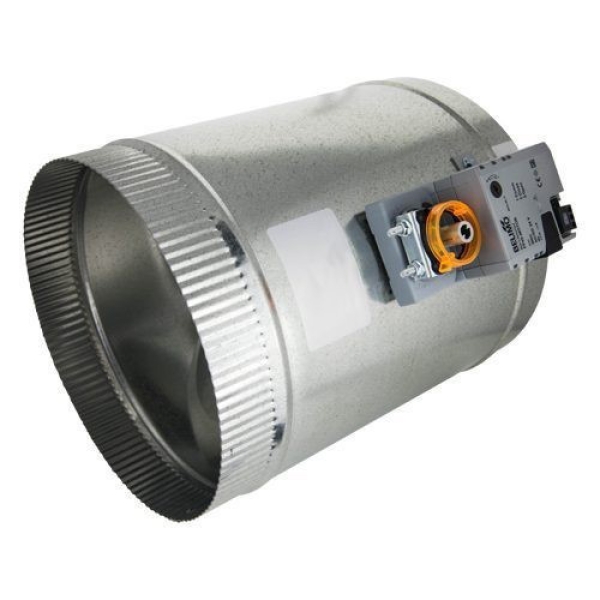

        MD Series 14 in Round 3 Wire Damper PO/PC

        iO HVAC Controls MD-14

        14 in Round 2 Position Zone Damper - Belimo 3 Wire Actuator, PO/PC, 60 Second Actuator timing, 2.5 VA, 24V - For use with the iO ESP Zone Panels or any zone panels needing 3 wire dampers - 5 YEAR WARRANTY

        14" Round 2 Position Zone Damper - Belimo 3 Wire Actuator, PO/PC, 60 Second Actuator timing, 2.5 VA, 24V - For use with the iO ESP Zone Panels or any zone panels needing 3 wire dampers - 5 YEAR WARRANTY

        Series      :      MD Series
        Voltage Rating      :      24 V
        VA Rating      :      2.5 VA
        Timing Range      :      60 s
        Torque Rating      :      18 in-lb
        Material      :      Aluminum
        Shape      :      Round
        Width      :      17
        Height      :      17
        • The MD-Series round dampers are galvanized steel, single blade dampers.
        • Complete with a 3-wire, 24 volt Power Close, Power Open actuator.
        • Perfect for use with ESP-400 Static Pressure Control Module.
        • The MD-Series dampers can be installed in any position.
        • Rated for duct systems less than 1.0 inch WC.
        • pdf Brochure https://www.gearypacific.com//ASSETS/DOCUMENTS/ITEMS/EN/MD-Series-Product-Brochure.pdf
        • pdf Specification Sheet https://www.gearypacific.com//ASSETS/DOCUMENTS/ITEMS/EN/MD-XX-Specification-Sheet.pdf
