Aspen CE42A3D-210R-165
| Series | : | CE Series |
| Coil Type | : | Cased |
| BTU Rating | : | 42000 Btu |
| Tonnage | : | 3.5 ton |
| Configuration | : | Multi |
| Material | : | Aluminum/Copper |
| Dimensions | : | 23 in H x 21 in W x 21-1/2 in D |

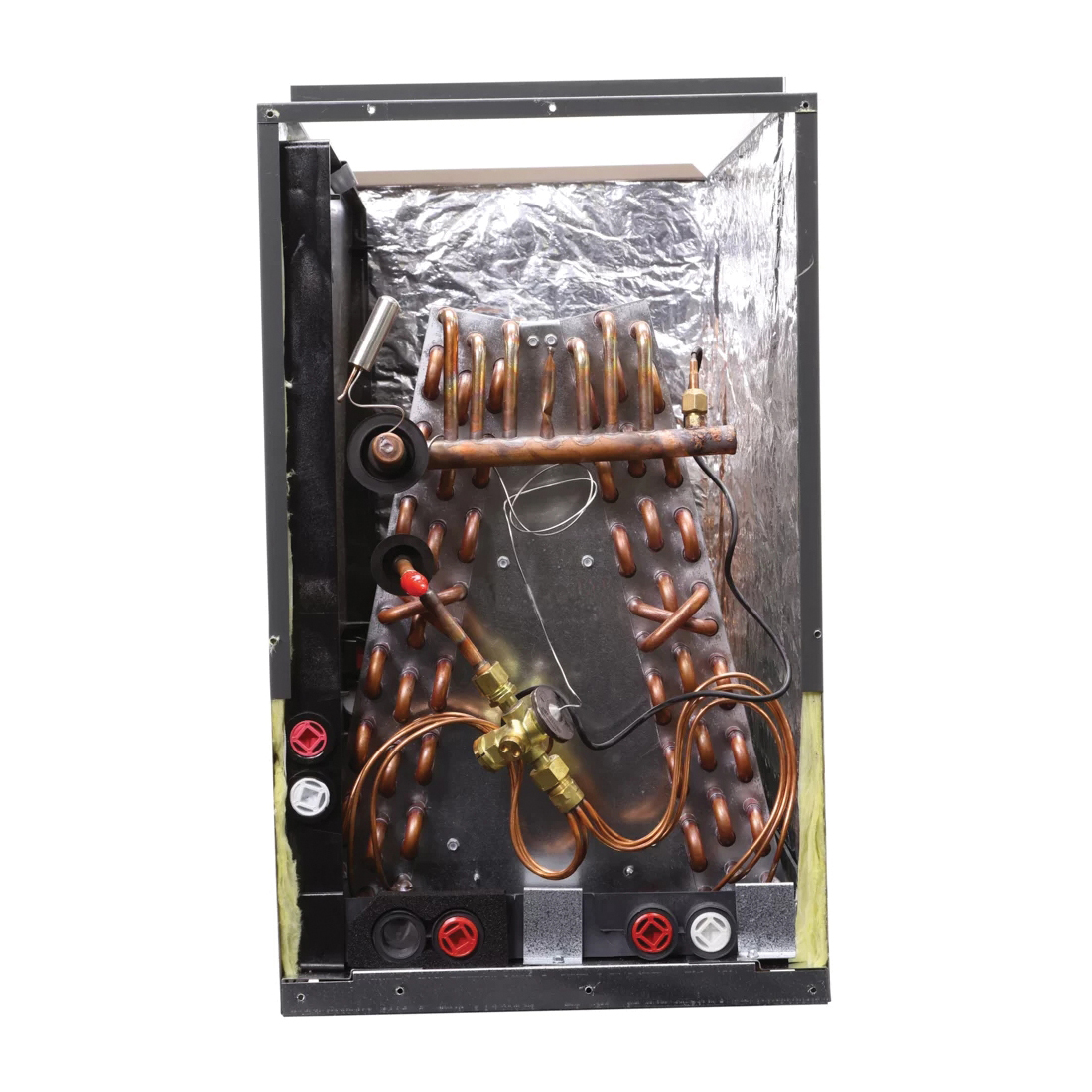

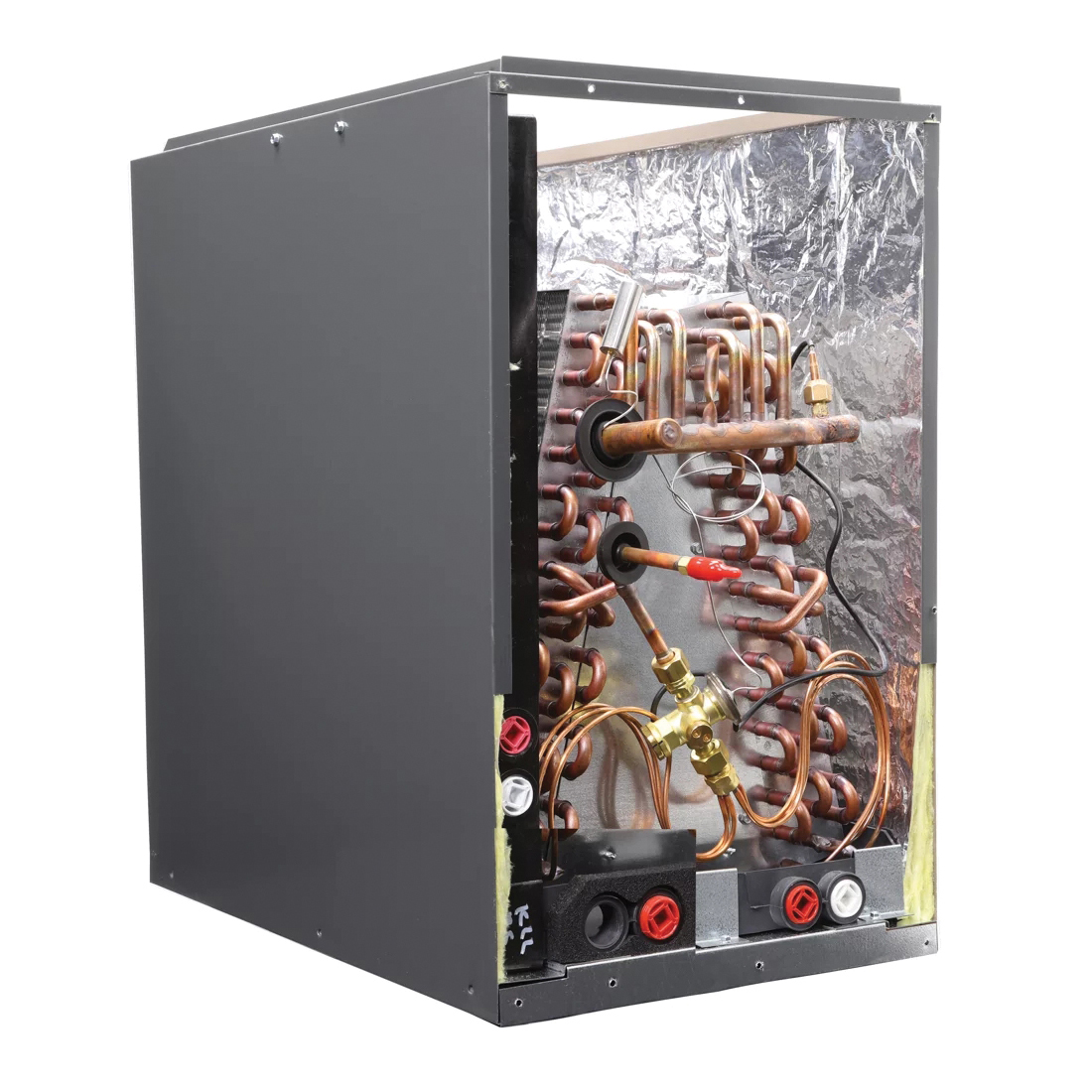

- Rifled copper tubing, enhanced aluminum fins.
- Standard Upflow without field modification. Downflow applications require field-installed downflow kit, sold separately.
- Immersion-tested at 500 psi, followed by nitrogen pressurization and factory sealing to ensure optimal system integrity and long-term reliability.
- Schrader provided for pressure assurance testing.

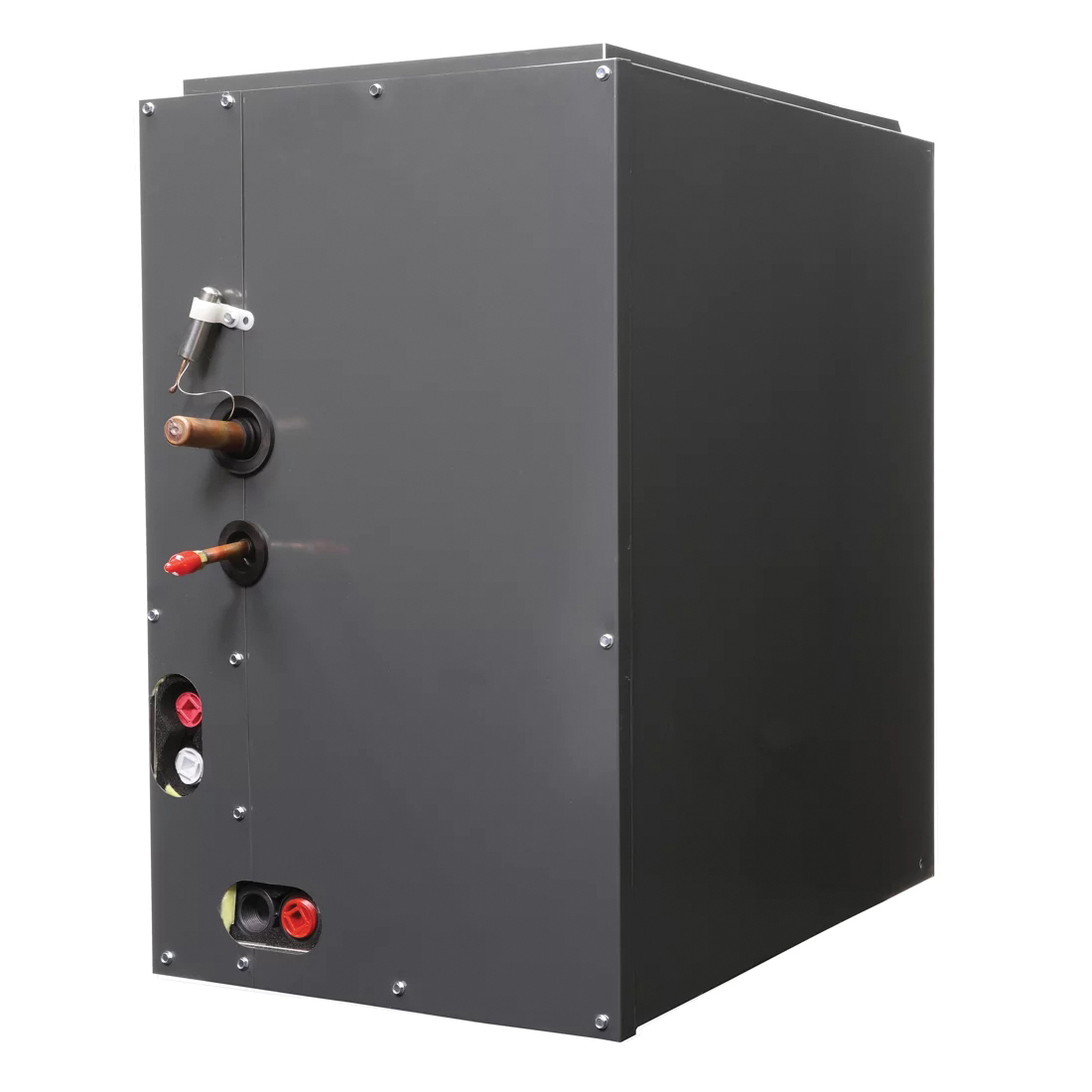

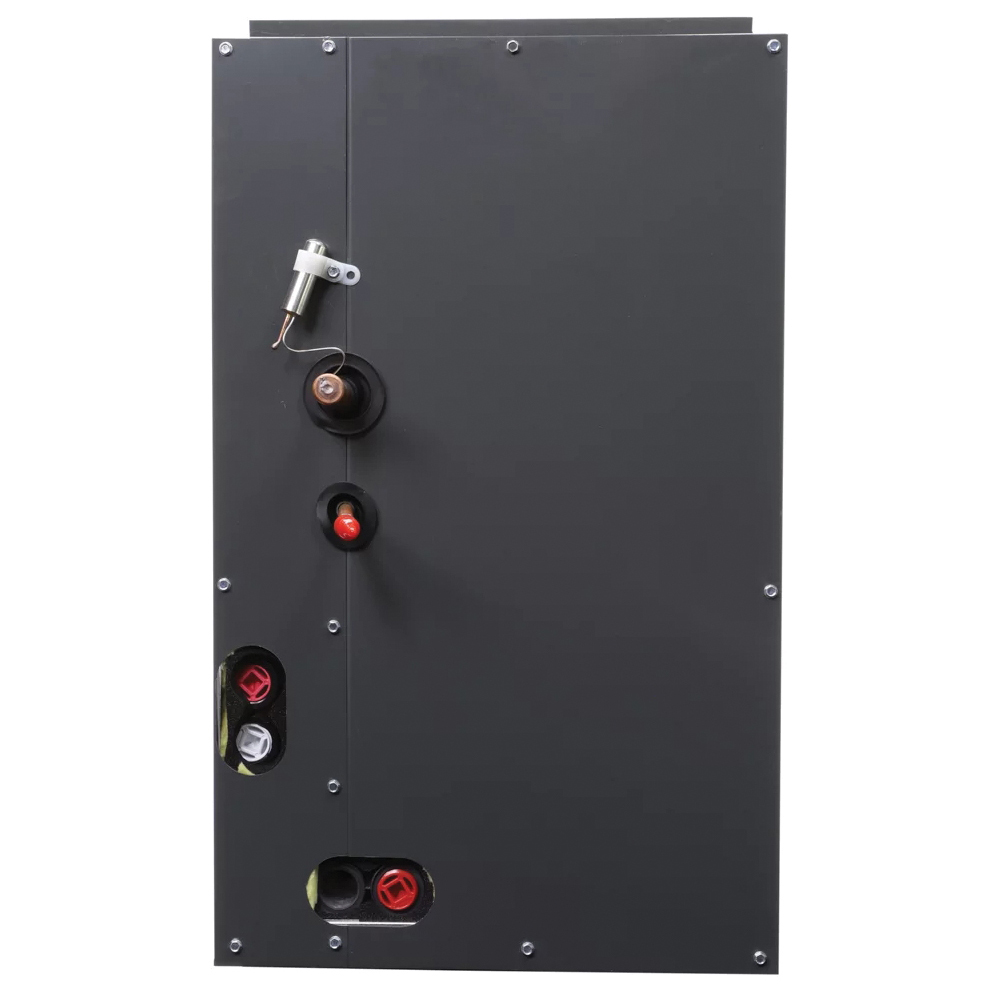

- Refrigerant lines exit top of coil. Shrader valve on liquid line or internally mounted factory installed TXV for pressure assurance testing. Refrigerant and plumbing connections:
- Liquid line: 3/4 ODS
- Suction line: 3/4 in ODS on 1-1/2-ton to 3-ton 7/8 in ODS on 3-1/2-ton to 5-ton
- Condensate Drains: 3/4 in NPT
- Heavy duty plastic drain pans on most models, powder coated galvanized steel horizontal drain pans standard on all.
- Fully insulated cabinets with faced insulation. Split access doors in front of cabinet for easy service access.
- AHRI certifiable with all brands of A/C and heat pump systems.
- ETL listed for R22 and 410A. ETL listed for R454B and R32 with Refrigerant Detection System (RDS)
- Ten-year limited warranty with registration.
