        Revolv® E7ED-B020K1
        Send Print
        1. pin-int
        Revolv® E7ED-B020K1

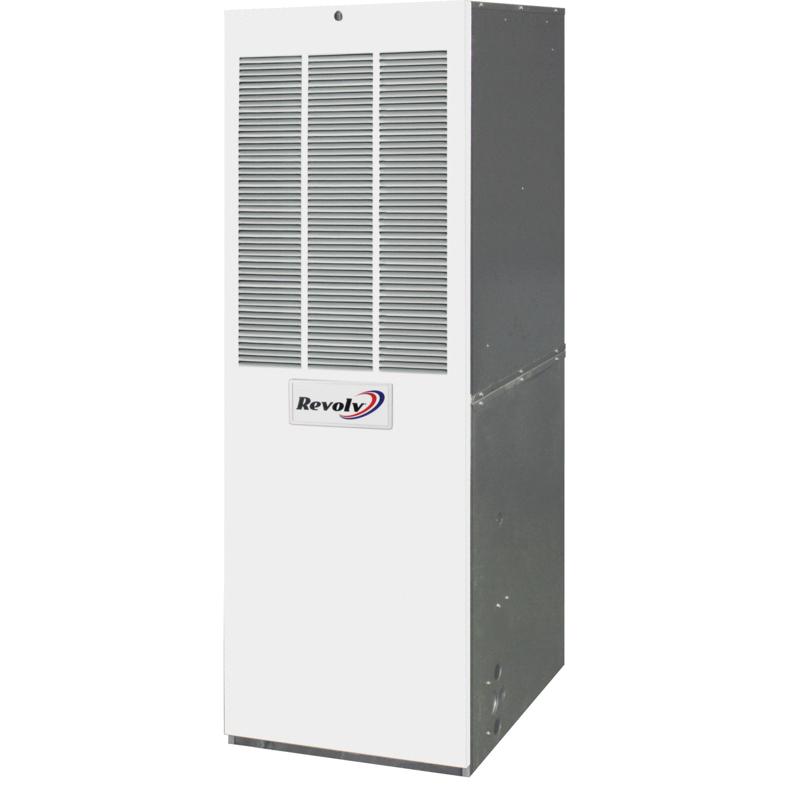

        Revolv® E7ED-B020K1 Mobile Home Electric Furnace, 70,000 BTU, 208/230 V, 20 kW,

        Revolv® E7ED-B020K1
        Series      :      E7 Series
        BTU Rating      :      70000 Btu/hr
        Tonnage      :      4 ton
        Voltage Rating      :      208/230 V
        Configuration      :      Downflow
        Frequency Rating      :      60 Hz
        Phase      :      1 ph
        Motor Type      :      ECM
        Additional Information      :      100% AFUE, Constant Torque Blower
        • Unique Manufactured Housing Design - With a robust, 20 inch W, fully-insulated cabinet to fit the classic MH footprint for replacement opportunities, The E7EM is the most versatile, future-friendly, HUD-compliant, MH electric furnace available.
        • 4-Ton AC-Ready ECM Blower - 16 dip-switch speed-settings and factory or field-installed 31 1/2 inch H coil box to support increasing coil sizes needed to meet increasing DOE minimum-efficiencies. (High-static blower kit #1044062 also available).
        • Modern Controls - Quiet heater relays and an integrated control board, eliminating the need for an additional time-delay relay for split systems.
        • New & Replacement Application Accessories - Save the hassle of sourcing materials, field-fabrication, and repeat supply-house trips and depend on Warranty and Support handled directly by Style Crest's dedicated HVAC Team, offering the most competitive warranty coverage and service in the Manufactured Housing Industry.
