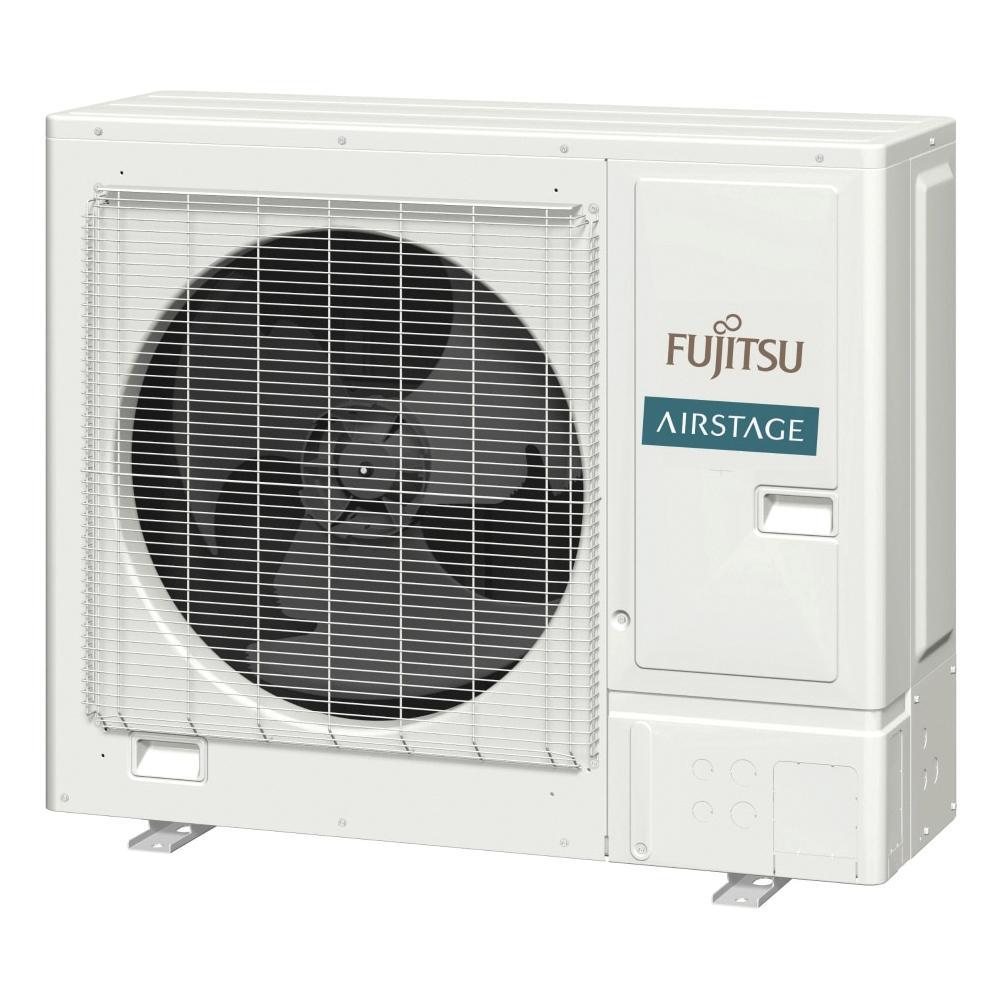

AIRSTAGE™ Heat Pump Outdoor Unit, H Series, Model: 24LMAS1, 208/230 V, 15.4 A Cooling, 15.9 A Heating, 1.76 kW, 1.87 kW Power, 60 Hz Frequency, 1 ph, Number of Fan Speeds: 1, Heating BTU Rating: 25200 Btu/hr, Cooling BTU Rating: 22000 Btu/hr, Heating CFM Rating: 730 cfm, Cooling CFM Rating: 647 cfm, 12.5 EER, 22.5 SEER, 12 HSPF, Flared Connection, Twin Rotary Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 5/8 in Suction Line, 20 A Fuse, Coil Rating: 18 FPI, Inverter Drive, Heating Sound Level: 48 dBA, Cooling Sound Level: 46 dBA, Wall Mounting, Steel, Beige, Heating Operating Temperature: 5 to 75 deg F, Cooling Operating Temperature: 14 to 115 deg F, 45-4/16 in Overall Width, 13-6/16 in Overall Height, Additional Information: Single-Zone, 11 in D
| Series | : | H Series |
| Model | : | 24LMAS1 |
| SEER Rating | : | 22.5 |
| Cooling BTU Rating | : | 22000 Btu/hr |
| HSPF Rating | : | 12 |
| Voltage Rating | : | 208/230 V |
| Amperage Rating | : | 15.4 A Cooling, 15.9 A Heating |
| Refrigerant Type | : | R-410A |
| EER Rating | : | 12.5 |
| Mounting Type | : | Wall |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| Compressor Type | : | Twin Rotary |
| Liquid Line Size | : | 3/8 in |
| Suction Line Size | : | 5/8 in |
| Drive Type | : | Inverter |
| Coil Rating | : | 18 FPI |
| Connection Type | : | Flared |
| Fuse Rating | : | 20 A |
| Material | : | Steel |
| Color | : | Beige |
| Additional Information | : | Single-Zone, 11 in D |
| Overall Width | : | 45-4/16 in |
| Overall Height | : | 13-6/16 in |
| Cooling CFM Rating | : | 647 cfm |
| Cooling Sound Level | : | 46 dBA |
- Auto Changeover
- 24 hr. Timer
- Auto Louver: Up/Down
- Minimum Heat Mode
- Wireless Remote Control Included
- Auto Restart
- Economy Mode
- Auto Fan Mode
Instruction/Installation Manual
