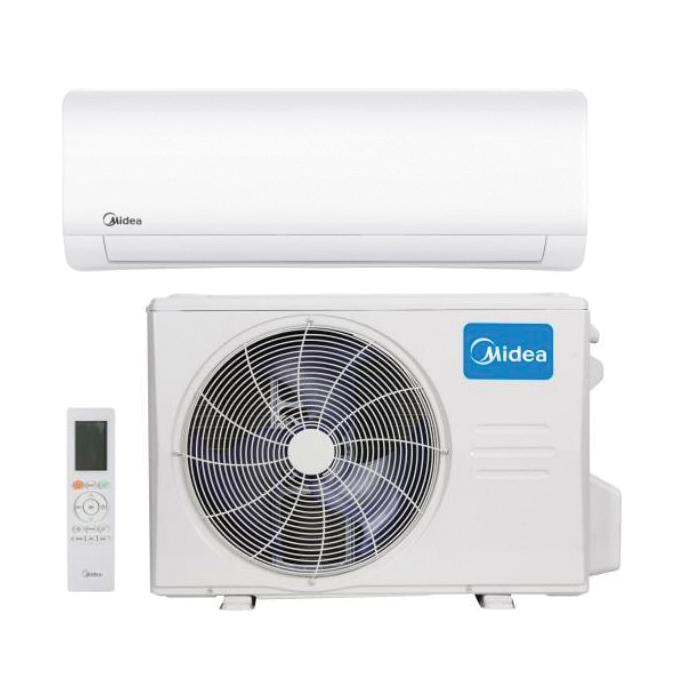

Midea® DLCERBH09AAK
Midea® Mini-Split Heat Pump, 208/230 V, 0.8 A, 34 W Power, 60 Hz Frequency, 1 ph, Heating BTU Rating: 10000 Btu/hr, Cooling BTU Rating: 9000 Btu/hr, Cooling CFM Rating: 1294 cfm, 12.6 EER, 21.7 SEER, 9.4 HSPF, Flared Connection, Rotary Compressor, R-410A Refrigerant, 1/4 in Liquid Line, 3/8 in Suction Line, Cooling Sound Level: 54.5 dBA, Wall Mounting, Heating Operating Temperature: 5 to 75 deg F, 30-1/8 in Overall Width, 21-7/8 in Overall Height, Additional Information: 11-7/8 in D
| SEER Rating | : | 21.7 |
| Cooling BTU Rating | : | 9000 Btu/hr |
| HSPF Rating | : | 9.4 |
| Voltage Rating | : | 208/230 V |
| Amperage Rating | : | 0.8 A |
| Refrigerant Type | : | R-410A |
| EER Rating | : | 12.6 |
| Mounting Type | : | Wall |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| Compressor Type | : | Rotary |
| Liquid Line Size | : | 1/4 in |
| Suction Line Size | : | 3/8 in |
| Connection Type | : | Flared |
| Additional Information | : | 11-7/8 in D |
| Overall Width | : | 30-1/8 in |
| Overall Height | : | 21-7/8 in |
| Cooling CFM Rating | : | 1294 cfm |
| Cooling Sound Level | : | 54.5 dBA |
Specification Sheet
