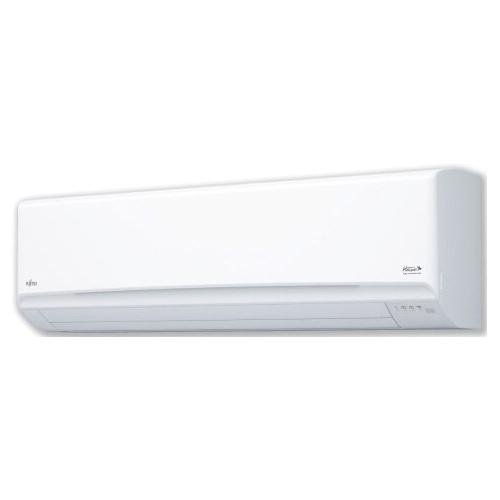

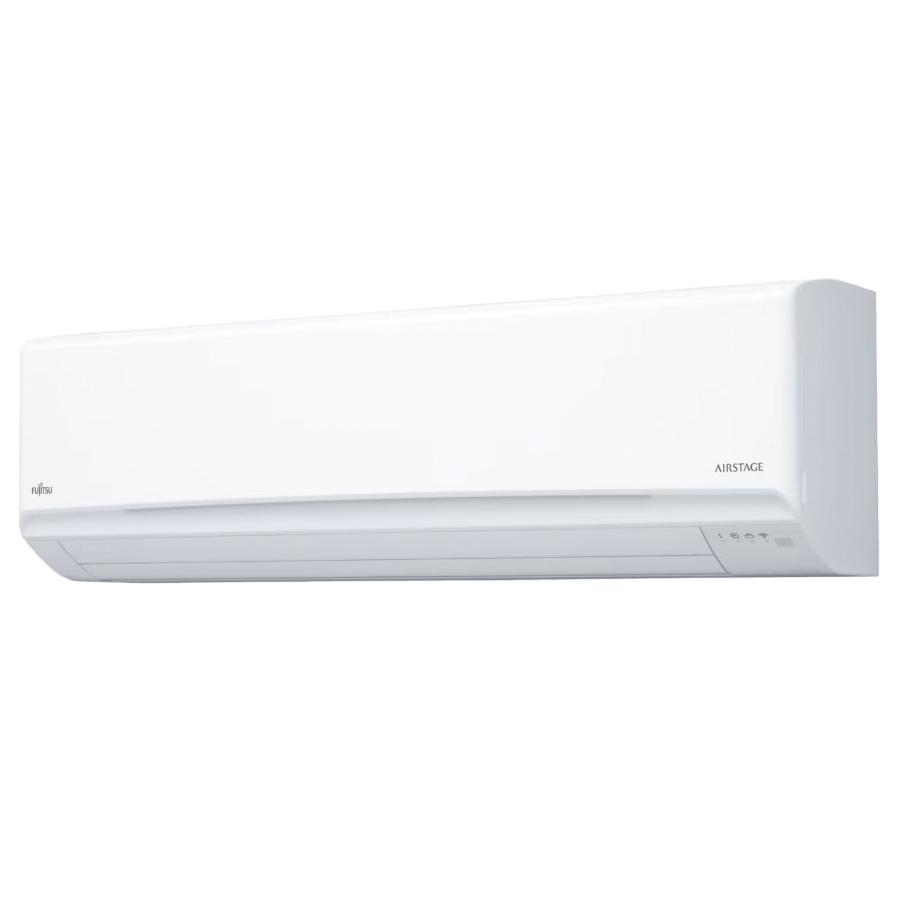

AIRSTAGE™ ASUH24LMAS
AIRSTAGE™ Indoor Unit, Series: LMAS Series, 208/230 V, 15.4/15.9 A, 1.76 kW, 1.87 kW, 60 Hz, 22000 Btu/hr Cooling, 25200 Btu/hr Heating, 647 cfm, 730 cfm Rating, 12.5 EER, 22.5 SEER, Flared Connection Type, 20 A Fuse, 46 dBA, Wall Mount, HDPE/Polypropylene, 5 to 75 deg F, 14 to 115 deg F, 45-4/16 in Overall Width, 13-6/16 in Overall Height, Additional Information: 5/8 in Dia Gas Connection, Copper Coil, 11 in D Dimensions
| Series | : | LMAS Series |
| SEER Rating | : | 22.5 |
| BTU Rating | : | 22000 Btu/hr Cooling, 25200 Btu/hr Heating |
| Voltage Rating | : | 208/230 V |
| Amperage Rating | : | 15.4/15.9 A |
| Mounting Type | : | Wall |
| Frequency Rating | : | 60 Hz |
| CFM Rating | : | 647 cfm, 730 cfm |
| Sound Level | : | 46 dBA |
| EER Rating | : | 12.5 |
| Connection Type | : | Flared |
| Fuse Rating | : | 20 A |
| Temperature Rating | : | 5 to 75 deg F, 14 to 115 deg F |
| Material | : | HDPE/Polypropylene |
| Additional Information | : | 5/8 in Dia Gas Connection, Copper Coil, 11 in D Dimensions |
| Overall Width | : | 45-4/16 in |
| Overall Height | : | 13-6/16 in |
- Indoor unit with HCRC (High Corrosion Resistant Copper) coils
- Compatible with 2-wire wired remote controllers
- 2 communication (UART) ports
- Service monitoring menu through UTY-RNRUZ5
- High efficiency, Energy Star rated systems
- Washable filter factory provided with IDU
- Large cross-flow fan with sound pressure levels as low as 30dB(A)
- Compatible with optional wireless LAN module UTY-TFSXF1
- Third-party thermostat compatible with optional interface UTY-TTRXZ1
Instruction/Installation Manual
