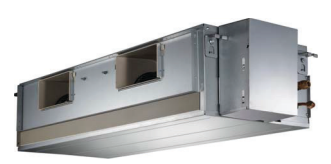

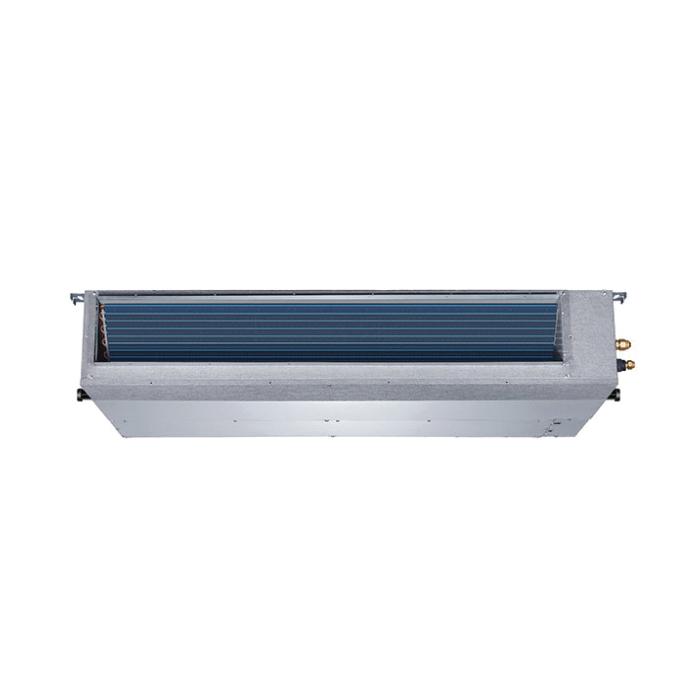

Carrier® DLFSDAH24XAK
Carrier® Heat Pump, DLFSDA Series, 208 to 230 V, 1.2 A, 60 Hz, 1 ph Phase, 24000 Btu/hr, 440 cfm, 700 cfm, 780 cfm, 12.5 EER Rating, 21 SEER, 12 HSPF, 3/8 in Liquid, 5/8 in Suction Connection, Tonnage: 2 ton, 35.5 dBA, 40 dBA, 44 dBA Sound Level, 62 to 90 deg F, 43.31 in Overall Width, 9.8 in Overall Height, Additional Information: 30.47 in D
| Series | : | DLFSDA Series |
| Voltage Rating | : | 208 to 230 V |
| Amperage Rating | : | 1.2 A |
| BTU Rating | : | 24000 Btu/hr |
| SEER Rating | : | 21 |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| CFM Rating | : | 440 cfm, 700 cfm, 780 cfm |
| EER Rating | : | 12.5 |
| HSPF Rating | : | 12 |
| Connection Type | : | 3/8 in Liquid, 5/8 in Suction |
| Tonnage | : | 2 ton |
| Sound Level | : | 35.5 dBA, 40 dBA, 44 dBA |
| Temperature Rating | : | 62 to 90 deg F |
| Overall Width | : | 43.31 in |
| Overall Height | : | 9.8 in |
| Additional Information | : | 30.47 in D |
- Flexible installation and increased air circulation
- Vertical or horizontal installation - designed for maximum installation flexibility with the built-in secondary drain pan, which allows the unit to be mounted vertically for either a floor or ceiling concealed installation depending on existing conditions
- Built-in condensate lift pump - supplied with a condensate lift pump that is capable of lifting the water 29-1/2 in above the top of the unit
- Mode - auto, cool, dry, heat, fan
- Up to 0.64 in WG
- Rear or bottom return
- Constant cu-ft/min operation
- Built-in condensate lift pump
- Follow me (senses temperature at handheld remote)
- Heating setback (46 deg F heating mode)
- Quiet indoor operation as low as 30 dBA
- Aluminum golden hydrophilic pre-coated fins
- Standard major series
- Mid-tier - advantage series
- Standard variation
