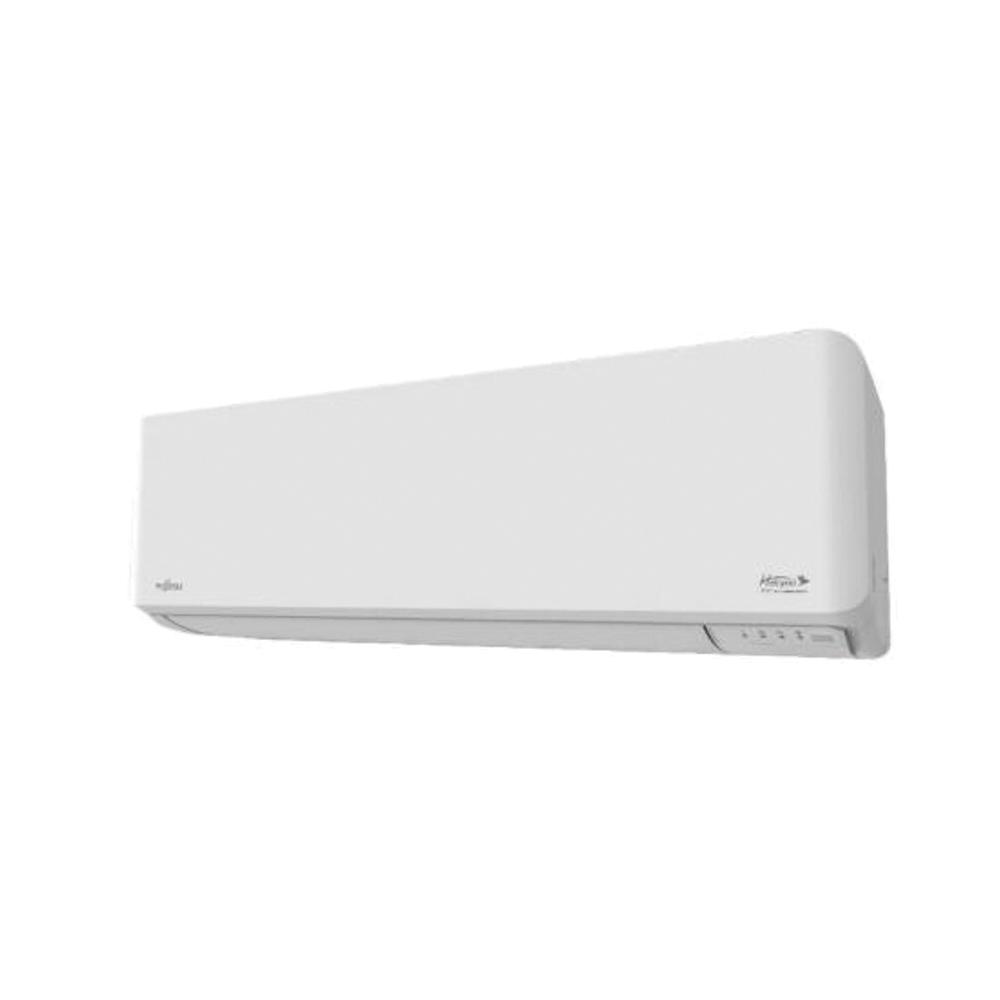

AIRSTAGE™ ASUH09LMAS
AIRSTAGE™ Indoor Unit, Series: LMAS Series, 208/230 V, 6.4/7.9 A, 0.63 kw, 0.84 kW, 60 Hz, 9000 Btu/hr Cooling, 12000 Btu/hr Heating, 453 cfm Rating, 14.3 EER, 26.5 SEER, Flared Connection Type, 15 A Fuse, 43 dBA, Wall Mount, HDPE/Polypropylene, 5 to 75 deg F, 14 to 115 deg F, 31-7/16 in Overall Width, 21-5/16 in Overall Height, Additional Information: 3/8 in Dia Gas Connection, Copper Coil, 11-7/16 in D Dimensions
| Series | : | LMAS Series |
| SEER Rating | : | 26.5 |
| BTU Rating | : | 9000 Btu/hr Cooling, 12000 Btu/hr Heating |
| Voltage Rating | : | 208/230 V |
| Amperage Rating | : | 6.4/7.9 A |
| Mounting Type | : | Wall |
| Frequency Rating | : | 60 Hz |
| CFM Rating | : | 453 cfm |
| Sound Level | : | 43 dBA |
| EER Rating | : | 14.3 |
| Connection Type | : | Flared |
| Fuse Rating | : | 15 A |
| Temperature Rating | : | 5 to 75 deg F, 14 to 115 deg F |
| Material | : | HDPE/Polypropylene |
| Additional Information | : | 3/8 in Dia Gas Connection, Copper Coil, 11-7/16 in D Dimensions |
| Overall Width | : | 31-7/16 in |
| Overall Height | : | 21-5/16 in |
- Ideal replacement for PTAC systems
- Significant energy savings
- Lower sound levels - up to 87% quieter than a PTAC
- 7 Louver settings with auto-swing
- Wireless LAN compatible with optional Wireless LAN interface UTY-TFSXF1
- Capable of being controlled through a field supplied key card switch or other sensors.
- Compatible with building automation system with optional Modbus or BACnet converter
- Indoor Unit includes handheld remote control
- Many control options available
Instruction/Installation Manual
