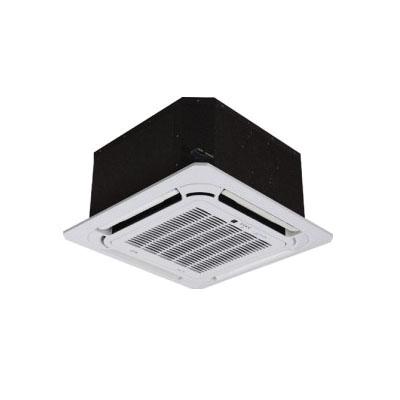

Carrier® DLFSCAH12XAK
Carrier® Heat Pump, DLFSCA Series, 208/230 V, 0.2 A, 60 Hz, 1 ph Phase, 12000 Btu/hr, 350 cfm, 12.5 EER Rating, 19.5 SEER, 10.2 HSPF, 1/4 in Liquid, 1/2 in Suction Connection, Tonnage: 1 ton, 42 dBA Sound Level, Aluminum, 62 to 90 deg F, 32 to 86 deg F, 22.44 in Overall Length, 22.44 in Overall Width, 10.24 in Overall Height
| Series | : | DLFSCA Series |
| SEER Rating | : | 19.5 |
| BTU Rating | : | 12000 Btu/hr |
| Tonnage | : | 1 ton |
| Voltage Rating | : | 208/230 V |
| Amperage Rating | : | 0.2 A |
| HSPF Rating | : | 10.2 |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| CFM Rating | : | 350 cfm |
| Sound Level | : | 42 dBA |
| EER Rating | : | 12.5 |
| Connection Type | : | 1/4 in Liquid, 1/2 in Suction |
| Temperature Rating | : | 62 to 90 deg F, 32 to 86 deg F |
| Material | : | Aluminum |
| Overall Width | : | 22.44 in |
| Overall Height | : | 10.24 in |
- Maximum flexibility for optimal comfort control
- Built-in condensate lift pump - the cassette is supplied with a condensate lift pump that is capable of lifting the water 29-1/2 in above the top of the unit
- Integrated electrical components - easy maintenance with the circuit box inside the unit, provides a more compact size for easier installation
- Mode - auto, cool, dry, heat, fan
- Auto restart function
- Louver control (fixed or swing)
- Three-speed fan
- Outside air intake
- Built-in condensate lift pump
- Follow me (senses temperature at handheld remote)
- Heating setback (46 deg F heating mode)
- Quiet indoor operation as low as 27 dBA
- Aluminum golden hydrophilic pre-coated fins
- Standard major series
- Standard variation
